Fast continuous large-format printing
Front operation & touch panel control
Stable wired & wireless network connection
Product Description
Item |

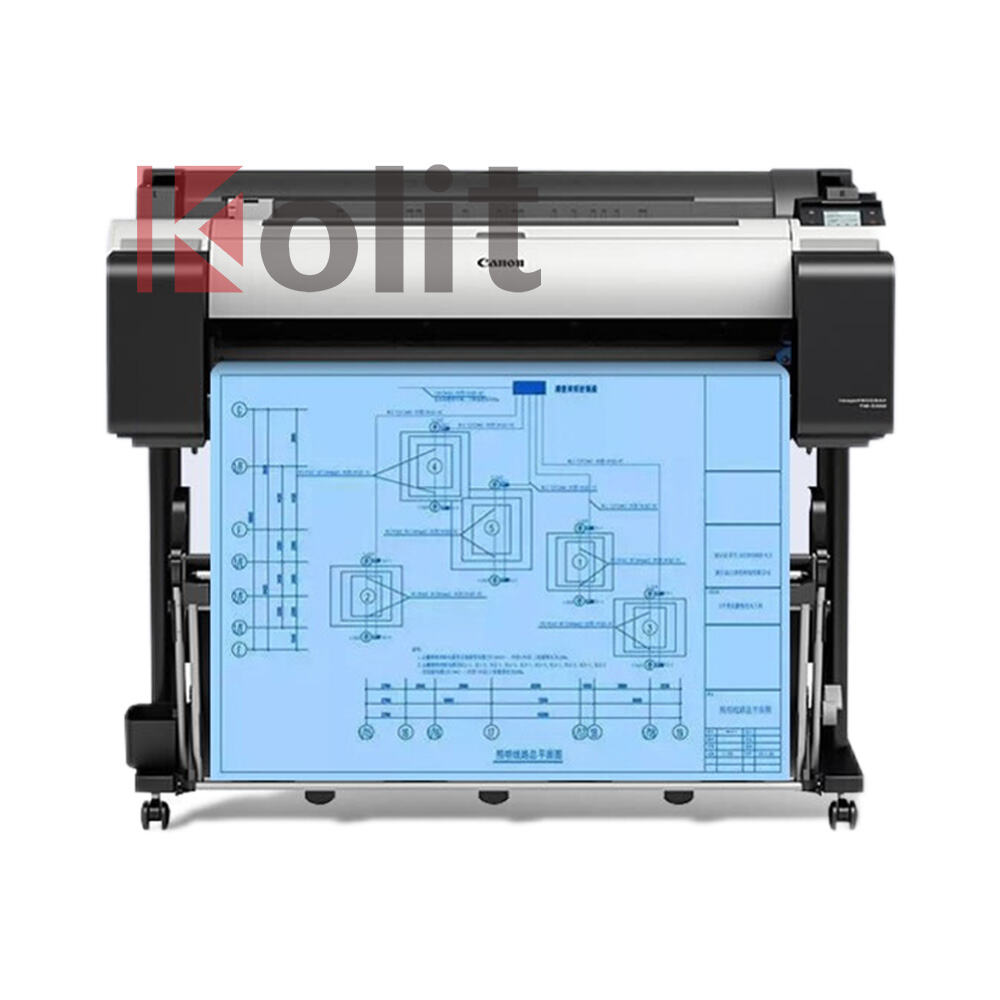

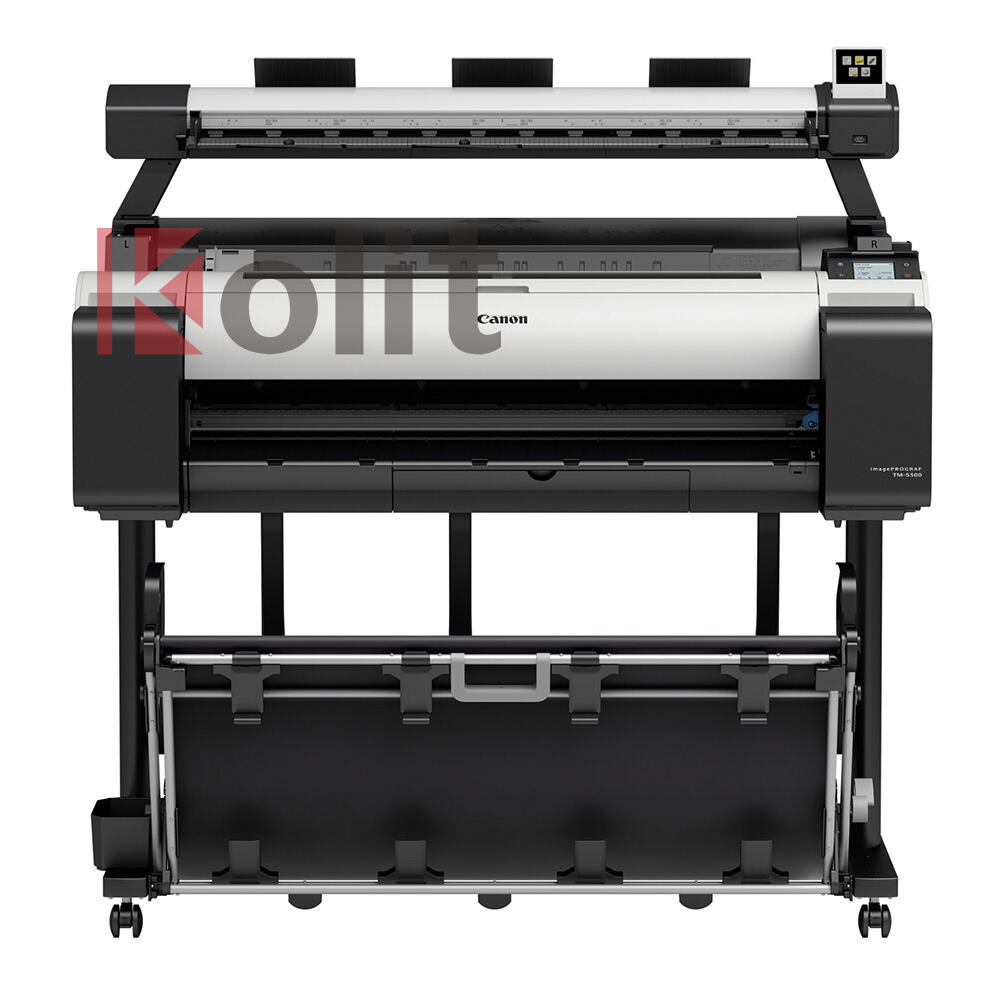

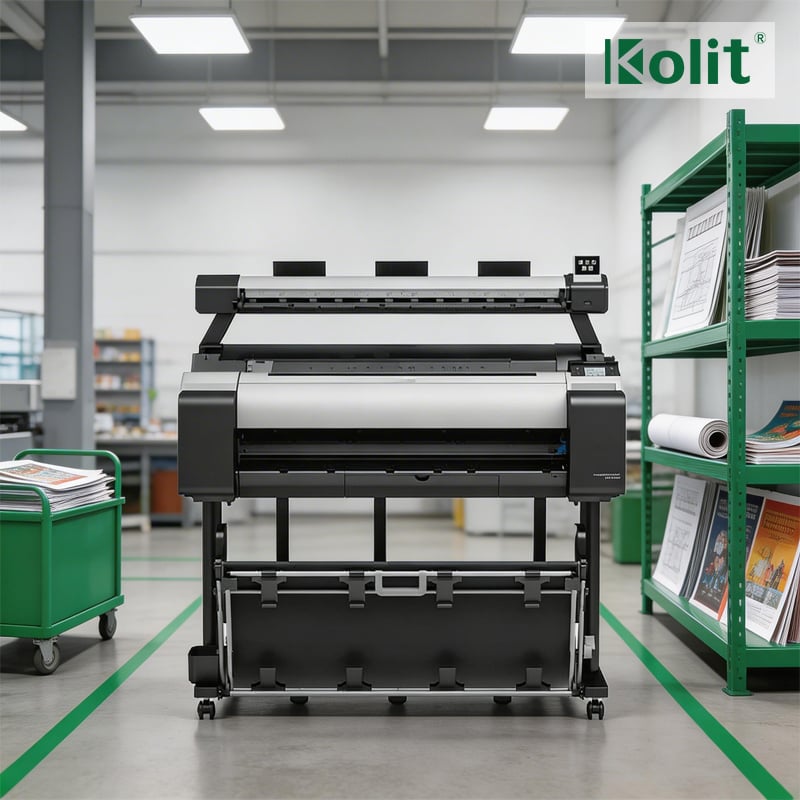

TM5350 MFP (A0+ 36" Multifunction Plotter) |
TM350 (A0+ 36" Large Format Printer, Upgradeable to MFP) |
Max Print Width |
914mm (36 inch, Full A0+ Oversize) |
914mm (36 inch, Full A0+ Oversize) |
Core Function |
Print / Copy / Scan All-in-One MFP |
Base Print Unit, Optional Scanner Upgrade for Copy & Scan |
Print Head |
Original PF-06 Canon Print Head |
Original PF-06 Canon Print Head |
Ink System |
5-Color LUCIA TD Pigment Ink: MBK, BK, Cyan, Magenta, Yellow |
5-Color LUCIA TD Pigment Ink: MBK, BK, Cyan, Magenta, Yellow |
Total Nozzle Quantity |
15,360 Nozzles (MBK:5120, Others:2560 each) |
15,360 Nozzles (MBK:5120, Others:2560 each) |
Maximum Print Resolution |
2400 × 1200 dpi |
2400 × 1200 dpi |
Minimum Ink Droplet |
5 pl Ultra-Fine Droplet |
5 pl Ultra-Fine Droplet |
Line Accuracy |
±0.1% Max Tolerance |
±0.1% Max Tolerance |
Ink Tank Capacity |
130ml Standard / 300ml High-Capacity PFI Series Ink |
130ml Standard / 300ml High-Capacity PFI Series Ink |
Operation Panel |
4.3" Color Touch LCD, 22 Multilingual Support |
4.3" Color Touch LCD, 22 Multilingual Support |
Power Supply |
AC 100–240V, 50/60Hz Global Wide Voltage |
AC 100–240V, 50/60Hz Global Wide Voltage |
Power Consumption |
Printing: ≤65W; Sleep: ≤1.6W; Off: ≤0.1W |
Printing: ≤65W; Sleep: ≤1.6W; Off: ≤0.1W |
Operating Noise |
Printing: ≤41dB(A); Standby: ≤35dB(A) |
Printing: ≤41dB(A); Standby: ≤35dB(A) |
Supported Media |
Roll paper, CAD tracing paper, coated paper, poster paper, photo matte paper, banner media |
Roll paper, CAD tracing paper, coated paper, poster paper, photo matte paper, banner media |
Standard Interfaces |
Gigabit Ethernet, USB-B, Wi-Fi, USB Direct Print |
Gigabit Ethernet, USB-B, Wi-Fi, USB Direct Print |
Scanning Specification (MFP Mode) |
A0 Full-Width Scan, Up to 600dpi Optical Resolution, Scan to USB/PC/Network Folder |
Optional Wide-Format Scanner Attachment Required for Scan & Copy |
Certified Standard |
ENERGY STAR, EPEAT Gold Eco-Certified |
ENERGY STAR, EPEAT Gold Eco-Certified |
Standard Accessory |
SD-35 Original Printer Stand, Output Basket |
SD-35 Original Printer Stand, Output Basket |
